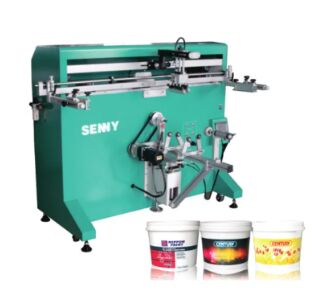

1000X250mm 10pcs/Min Semi Automatic Screen Printing Machine For Bucket
Produktdetails:
| Herkunftsort: | Dongguan China |
| Markenname: | SENNY |
| Zertifizierung: | CE SGS |
| Modellnummer: | SA1200-D2 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 STÜCK |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Sperrholzpaket |
| Lieferzeit: | einen Monat |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 100pcs/Jahr |
|
Detailinformationen |
Produkt-Beschreibung
Technical Specifications:
SA400-D2 and SA1200-D2 is for cylindrical and elliptical containers, only different size of container; SA400-D4 is for irregular/complex objects:
| Mode | SA400-D2 | SAS400-D4 | SA1200-D2 |
| Container shape | Cylindrical and Elliptical | Irregular | Cylindrical and Elliptical |
| Max. printing area | 300X250mm | 300X250mm | 1000X250mm |
| Max.screen frame size | 550X400mm | 550X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ100mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 600pcs/hr |
Technical Characteristics
This is a well designed and versatile machine. The SA1200-D2 can screen print on cylindrical and Elliptical objects, and SA400-D4 can make screen print on irregular or complex shapes such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.
The SA1200-D2 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the SA1200-D2 the perfect all around universal screen printing press.
- • Pneumatic controlled with shock absorbers
- • Microprocessor controlled - PCB
- • Vertical part lift with height adjustment
- • Print stroke controlled with rodless cylinder
- • X/Y/R positioning ware-mounting table
- • Linear ball bearings on hardened shafts
- • Squeegee tilt, skew, and height adjustable
- • Screen frame angle & tilt adjustable
- • Synchronized bottle inflation system with regulator
- • Regulated squeegee pressure with pressure gauge
- • Floor levelers & casters
- • Foot switch controlled
- • Servo-drive, more stable
Application Scope:
It is mainly used for one color to multi color repeated screen printing of round/oval plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.
Printing samples
