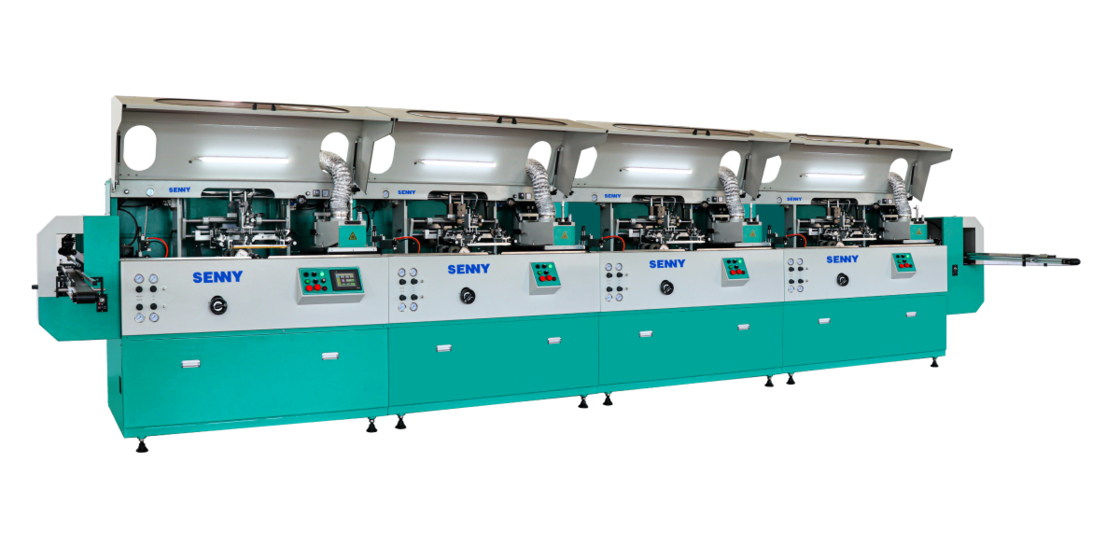

1-8 Color Fully Automatic Bottle Screen Printer For Round Containers Up To 100pcs/Min
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | Senny |
| Zertifizierung: | CE SGS |
| Modellnummer: | SL1466 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Set |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Sperrholzpaket |
| Lieferzeit: | einen Monat |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 10pcs/Monat |
|
Detailinformationen |
|||
| Automatische Note: | Vollautomatisch | Plattentyp: | Bildschirmdrucker |
|---|---|---|---|
| Gedruckte Farben: | 1 bis 8 | Drucken von Haltbarkeit: | Hohe Haltbarkeit |
| Garantie: | 1 Jahr | After-Sales-Service: | Video oder online |
| Zertifizierung: | CE SGS | Verpackungserfassungen: | Sperrholzpaket |
| Zahlungsbedingungen: | T/t | ||
Produkt-Beschreibung
1-8 Color Fully Automatic Bottle Screen Printer For Round Containers Up To 100pcs/Min
Features:
The SL1466 Container UV Screen Printing Machine is a fully automatic screen printing equipment for cylindrical and special-shaped containers, with an extremely wide range of applications. It can perform screen printing on various cylindrical and special-shaped containers such as plastic bottles, metal cans, glass jars, ceramic bottles, and stainless steel kettles. It is capable of printing thermosetting inks of various colors, meeting the container decoration needs of different industries including food and beverage, beauty and skin care, daily chemicals, and crafts. Whether it is a simple logo, an intricate pattern, or a gradient color effect, this machine can achieve high-precision and high-quality printing, ensuring that the printed patterns are clear and bright with strong adhesion.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
It comes with multiple functional configurations: gearbox feeding for stable conveyance of workpieces; robotic vacuum directional feeding for precise material transfer; host speed-regulating motor-driven surface treatment (adjustable intensity as needed); electrostatic dust removal to eliminate surface static and dust; flame surface treatment to enhance material adhesion; pre-positioning to ensure accurate pre-printing alignment; container adjustable pressure inflation printing (adapting to different containers via pressure adjustment); automatic screen printing for process automation; motorized print head lifting for easy screen loading/unloading; motorized screen lifting for convenient screen wiping; high-intensity US UV curing (optional LED-UV) for rapid pattern curing; speed-regulating motor rotation for cylindrical containers during UV exposure (ensuring uniform curing); robotic vacuum unloading for smooth finished product discharge; and adjustable-speed unloading conveyance for flexible speed control.

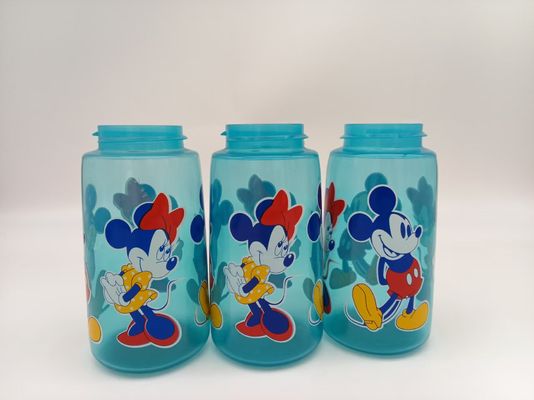

Printing sample
Customer Factory using our machine
Support and Services:
We provide comprehensive technical support and service guarantees for cap printing machines. Our professional team consists of experienced and well-trained technicians, ready to solve any problems that arise during the operation of your machine. Our support services cover various aspects, including troubleshooting, parts replacement, equipment maintenance, and software upgrades. We also offer on-site repair and maintenance services to ensure that the equipment can be properly handled on-site. In addition, we have a complete range of replacement parts and supplies to meet your various needs.
We always take pride in providing excellent customer service. Our team is on call 24/7 to answer your questions and handle issues at any time. We are committed to delivering high-quality services and fully ensuring your satisfaction.
If you have any questions or need assistance, please feel free to contact us. We look forward to supporting your bottle cap printing machine!
