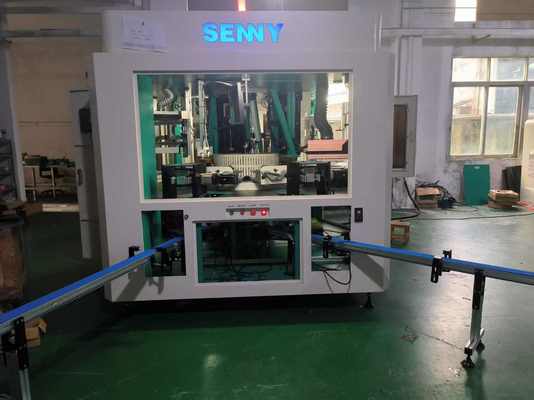

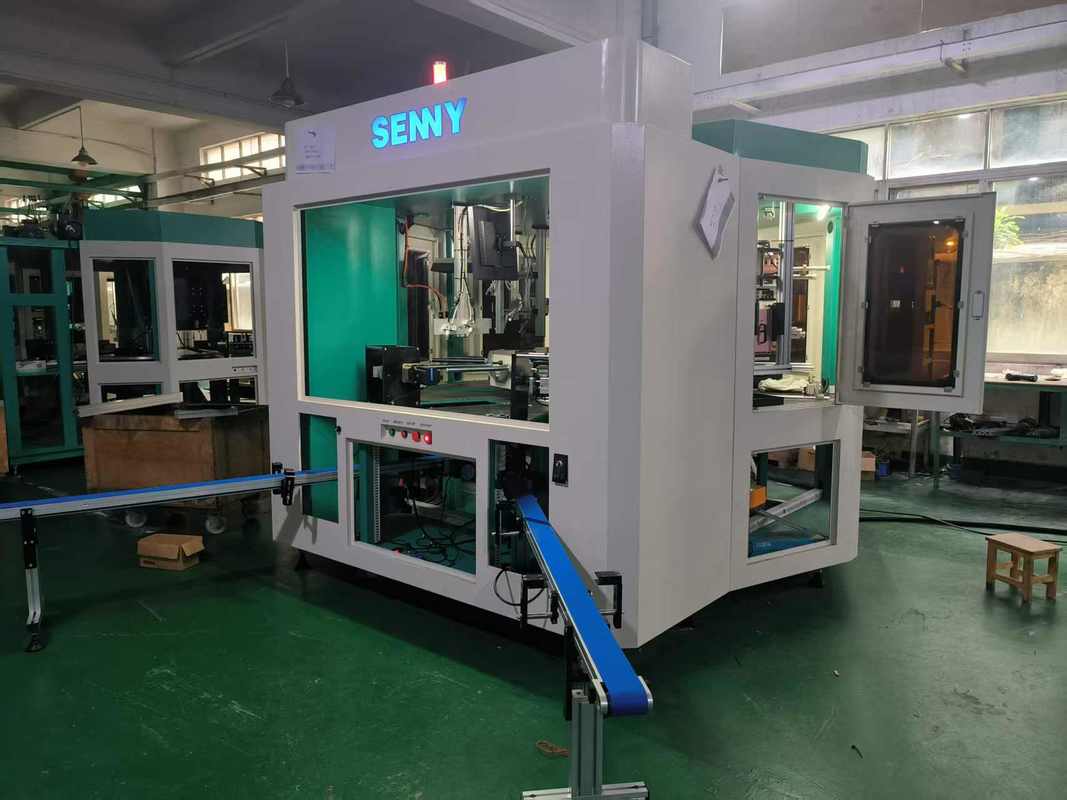

360-Degree Printing Bottle Screen Printer For Hot Stamping And UV Ink Printing On Bottles And Jars

360-Degree Printing Bottle Screen Printer For Hot Stamping And UV Ink Printing On Bottles And Jars

Machine Features:

The machine supports multiple decorative processes (e.g., multi-color UV ink screen printing, hot stamping) for products like bottles, jars, and caps. It works with materials including plastic, metal, and glass, meeting needs of cosmetics, daily chemicals, and food packaging industries.

With an integrated turntable, all printing steps are done on one fixture (no mid-process fixture replacement). It achieves ±0.1mm printing accuracy and prevents product scratches by precise fixture-product fitting.

Driven by a digitally controlled servo motor, it enables 360° all-around printing for cylindrical/conical workpieces. It also has remote management & service functions (Industry 4.0-compliant) for real-time production monitoring and fault early warning.

It uses well-known brand electrical components and a mature PLC control system for stable long-term operation. The "touchscreen + wireless tablet" dual-operation mode is intuitive and easy to master, even for non-professionals.

Main Functions:

Wireless tablet control function;

Remote service management function;

Speed-adjustable conveyor separation feeding function;

Bottle standing robot feeding function;

Digitally controlled servo motor drive for 3-color 360-degree printing;

UV curing function;

Standing robot bottle discharge function;

Conveyor discharge function with adjustable speed.

Ten workstations:

1. Visual positioning and electrostatic dusting of the bottom of the feed bottle;

2. Flame treatment

3. Visual positioning of the bottle

4. First color screen printing

5. LED-UV curing

6. Second color screen print

7. LED-UV curing

8. Third color screen printing (or hot stamping)

9. UV curing

10. Discharge.

Technical Specifications:

Hot stamping head                                                 Screen printing device

Applications:

SRS388 CNC Automatic UV Screen Printing Machine is an automatic UV screen printing machine. The printing scope is very wide and it can be used for screen printing of various containers such as container bottles, round bottles, flat bottles, irregular containers, etc.

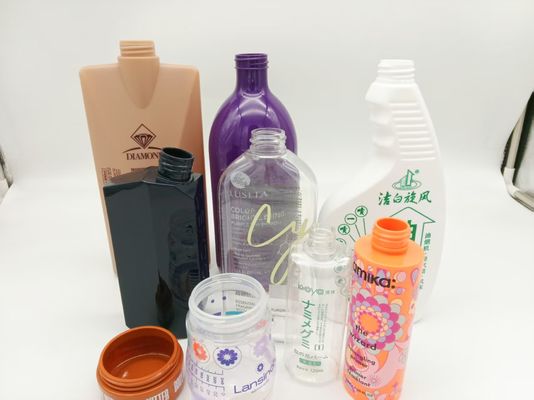

Printing sample

What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?

1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.

2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.

3. CNC printers are easier to use with remote management and service feature.

4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.

5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
